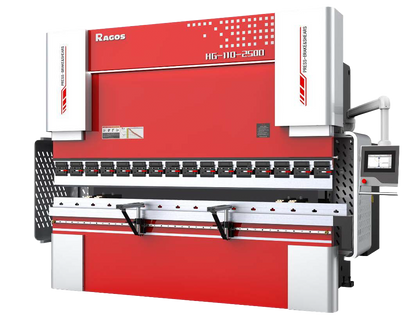

RAGOS HG Series

Electric-Hydraulic HYBRID Press Brakes

The RAGOS HG Series Electric-Hydraulic HYBRID press brakes feature a servo motor to drive the cylinder up and down giving you the power of hydraulics without the large hydraulic tank, resulting in a very quiet and energy efficient press brake.

FEATURES AND BENEFITS

Delem DA-58T +
Delem Profile T Offline Software

Delem DA-58T +
Delem Profile T Offline Software

Robust Structure

Robust Structure

4 +1 axis (Y1/Y2/X/R & V, crowning)

4 +1 axis (Y1/Y2/X/R & V, crowning)

Optional Delem DA-66T 6+1 Axis and DA-69T 6+1 Axis

Optional Delem DA-66T 6+1 Axis and DA-69T 6+1 Axis

  • Increased approach and return speeds of 180mm/s
  • Less energy consumption thanks to new innovative drive system
  • Less oil consumption for environmental friendliness
  • Large opening and cylinder stroke
  • Tool crash protection
  • CNC automatic crowning system
  • Sliding door to rear of machine that meets safety standards

SPECIFICATIONS

Technical Parameters
HG-110-2500
HG-110-3200
HG-110-4000
Main motor power (kw)
8.7
8.7
8.7
Return
180
180
180
Distance between columns (mm)
2000
2700
3500
Throat depth (mm)
400
400
400
Length of workbench (mm)
2500
3200
4000
Nominal force (ton)
110
110
110
Fast forward
200
200
200
Working feed (mm/s)
10
10
10
Weight (kg)
7200
8500
9500
Opening height (mm)
500
500
500
Slider stroke (mm)
200
200
200
LxWxH (mm)
3060 x 2050 x 2540/ 2620
3860 x 2050 x 2540/ 2620
4680 x 2050 x 2650/ 2730
