BOCHU Nozzle Visual Alignment Tool
Fibre Laser Beam Alignment
Achieve faster, safer and more accurate laser beam alignment with the BOCHU Nozzle Visual Alignment Tool. Designed for fibre laser cutting machines, this intelligent calibration device eliminates the guesswork of traditional nozzle alignment methods, allowing operators to quickly centre the laser beam with exceptional precision.
Using a real-time visual positioning system, the tool displays the relationship between the laser beam and nozzle centre, enabling adjustments without repeated test firing or trial-and-error. The result is improved cutting quality, more consistent assist gas flow and reduced consumable wear.
Even slight nozzle misalignment can lead to burrs, dross, rough cut edges and unstable cutting performance. By accurately aligning the beam to the nozzle, the BOCHU Visual Alignment Tool helps maintain optimum cutting conditions, reducing scrap, improving edge quality and extending nozzle life. The system is capable of alignment accuracy of up to ≤0.01 mm, making it an invaluable maintenance tool for manufacturers seeking maximum cutting performance.

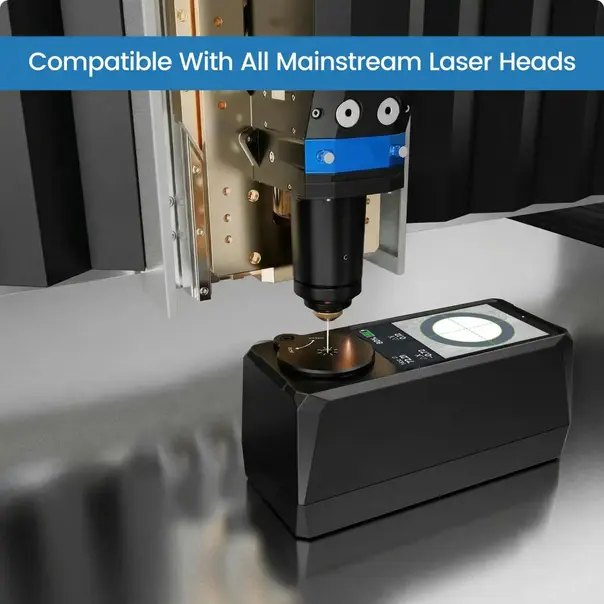

Compatible with a range of popular fibre laser cutting heads including BOCHU/BOCI, Raytools, Bodor, WSX and OSPRI, the tool can complete alignment in as little as one to two minutes, making routine maintenance faster while significantly reducing machine downtime.
Safer Alignment Process
Unlike traditional tape-shot methods, the visual alignment process does not rely on repeated laser firing during beam centring, providing a safer and more controlled setup procedure.
Reduced Nozzle Wear
A properly centred beam prevents uneven gas flow and excessive nozzle damage, helping extend consumable life.
Improved Cutting Quality
Correct beam alignment produces cleaner edges while reducing dross, burrs and inconsistent cutting.
Faster Machine Setup
Complete nozzle alignment in approximately one to two minutes, reducing maintenance time and increasing machine productivity.
High Precision Calibration
Achieves beam centring accuracy of up to ≤0.01 mm, helping maintain optimal cutting performance and consistent results.
Real-Time Visual Alignment
Quickly view the laser beam position in relation to the nozzle centre, eliminating guesswork and improving alignment accuracy.
