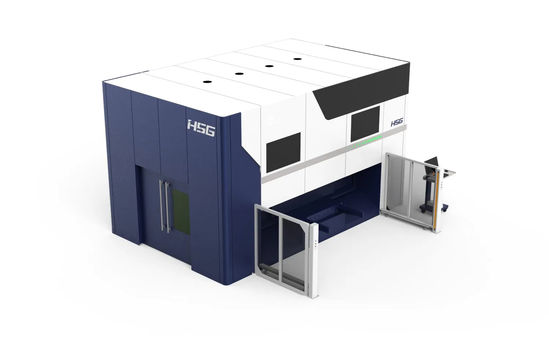

HSG Cell3015G
3D Five-axis Laser Cutting Machine
The HSG Cell 3015G is an advanced 3D five-axis fibre laser cutting system engineered for manufacturers who require exceptional precision, flexibility, and performance when processing complex components. Designed to handle intricate geometries and multi-angle cutting tasks, this high-end solution enables accurate beveling, contour cutting, and three-dimensional profiling in a fully automated workflow.
Equipped with five-axis simultaneous movement capability, the Cell 3015G allows the cutting head to approach workpieces from multiple angles, making it ideal for producing parts with bevels, chamfers, curved surfaces, and complex edge profiles. This capability eliminates the need for secondary machining processes, reducing production time while improving overall part accuracy and consistency.
The machine integrates an intuitive CNC control system with advanced 3D programming and simulation software, allowing operators to easily generate, verify, and optimise complex cutting paths. Real-time monitoring and adaptive cutting functions further enhance reliability and productivity in demanding production environments.
Capable of processing stainless steel, carbon steel, aluminium, titanium, and other industrial metals, the Cell 3015G is widely used in industries such as automotive manufacturing, aerospace engineering, heavy equipment production, and high-precision metal fabrication.
Fully-closed Structure
The machine is equipped with a top cover, creating a fully enclosed structure to maintain a clean working environment. It also features safety interlocking doors that ensure a completely sealed workspace during operation.
LA5 Five-axis Linkage Cutting Head
The LA5 Five-axis Linkage Cutting Head, developed by HSG Laser, is designed specifically for 3D cutting. It features full 360° rotation and a ±135° swing for versatile, precise cuts. With slender nozzle units and a reliable airway design, it ensures consistent cutting quality and performance.
Double-station Turn Table
Built with a carbon steel base for durability, the turn table features two stations, each driven by a powerful servo motor. This design allows the table to rotate between stations in just 3 seconds, significantly speeding up production. The machine also offers adjustable support arms and a customizable clamping range, ensuring it can accommodate various workpieces and meet specific manufacturing requirements.
Video Monitoring Cameras
The machine is equipped with HD cameras that allow operators to monitor the entire cutting process from the control console. A display screen on the front of the machine shows real-time machining status, giving operators a clear view of the operation as it happens.
FANUC Five-axis Linkage Control System
The FANUC system enables high-speed, precise 3D five-axis laser cutting by seamlessly integrating laser output with servo control. Its advanced and dynamic control technology ensures smooth and accurate machining, delivering excellent cutting results.
Five-axis Simultaneous Movement
Capable of precise cutting on 3D surfaces, including angled and bevel cuts, for complex parts.
TODC-B Dust Extraction Unit
Optional - can be provided with machine by request
