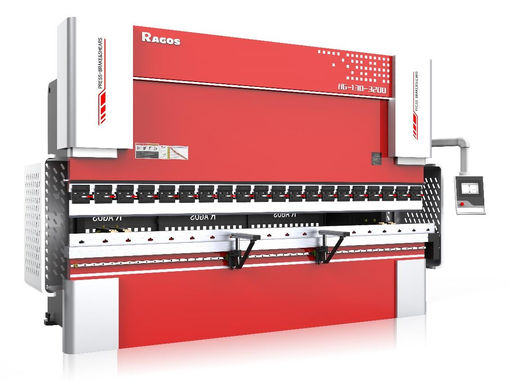

Ragos HG 130-3200 (7 Axis)
Electric-Hydraulic HYBRID Press Brake
The Ragos HG 130-3200 CNC Press Brake with advanced 7-axis control (Y1, Y2, X, R, Z1, Z2, V crowning) delivers unmatched precision and versatility for metal bending applications. Engineered with a hybrid electric-hydraulic system, it combines energy efficiency with powerful performance. The DELEM touchscreen controller ensures user-friendly operation and precise adjustments, while the V-axis crowning guarantees consistent bend angles across the workpiece. Ideal for complex and high-precision tasks, this machine is perfect for achieving superior bending accuracy and efficiency in modern fabrication environments.
FEATURES AND BENEFITS
Delem DA-66T CNC Press Brake Controller
The new generation DA-Touch controls offers an even higher grade of efficiency in programming, operation and control of today’s press brakes. Ease of use combined with state-of-the-art technology go hand in hand, improving productivity.
Features:
-
2D graphical touch screen programming mode
-
17" high resolution colour TFT
-
Full Windows application suite
-
Delem Modusys compatibility (module scalability and adaptivity)
-
USB, peripheral interfacing
-
User specific application support within the control's multitasking environment
-
Sensor bending & correction interface
-
Profile-TL offline software
7 Axis (Y1-Y2-X-R-Z1-Z2, V Crowning)
The Ragos HG 130-3200 features a 7-axis configuration (Y1, Y2, X, R, Z1, Z2, V Crowning) offering advanced precision and versatility in metal bending applications.
Y1 and Y2 Axes: Control the independent movement of the left and right sides of the ram, enabling precise angular accuracy and accommodating complex bending operations.
R Axis: Adjusts the vertical position of the back gauge, allowing for bends at varying heights on the workpiece.
Z1 and Z2 Axes: Control the horizontal movement of the back gauge fingers, facilitating positioning for different widths and complex bend sequences.
V-Axis Crowning: Compensates for deflection in the machine and tooling during bending, ensuring consistent bend angles across the entire length of the workpiece.
Advanced Control System
Offering precise programming, offline simulation, and faster setups for optimised, accurate bending results.
Precision Crowning
CNC automatic crowning system adjusts automatically, enhancing bending accuracy across the full length.
Extended Capability
A larger opening and increased cylinder stroke enable versatile applications and accommodate larger materials.
Energy Efficiency
The new innovative drive system minimises energy consumption, reducing operating costs.
Safety Compliant Design
Features a rear sliding door that meets safety standards, offering protection without compromising accessibility.
Tool Crash Protection
Built-in safeguards prevent tool damage, protecting your investment and ensuring consistent results.
Environmentally Friendly
Lower oil consumption supports eco-friendly operations without sacrificing performance.
Faster Operation
Increased approach and return speeds of up to 180mm/s maximise productivity and reduce cycle times.
