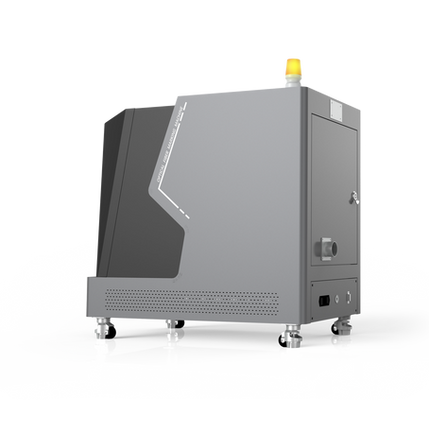

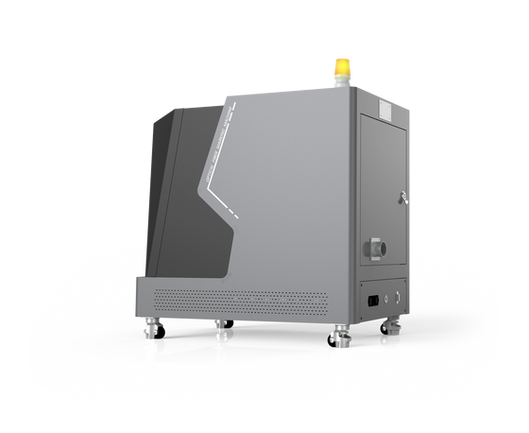

Fully Enclosed Desktop Marker
Our Fully Enclosed Desktop Marker is designed for precision engraving on various materials. With advanced laser technology, it offers high accuracy and speed in etching designs, logos, and text onto surfaces like wood, acrylic, leather, glass, and more. Its user-friendly interface and intuitive software make it accessible for both beginners and experienced users. Equipped with safety features and efficient cooling systems, this Laser Marker ensures reliable performance and durability.
FEATURES AND BENEFITS
Long lifespan of fiber laser source: 100,000 – 200,000 hours
High-precision and high-speed scan head featuring excellent sealing capabilities
High Speed: 7000mm/s
Strong File Format Compatibility
Superior Laser Beam: A definition of 1 micron
Integrated Air Cooling System
SPECIFICATIONS
Laser Wavelength | 1064nm |
Standard Marking Area | 150mm*150mm |
Optional Marking Area | 70*70mm /100*100mm /200*200mm /300*300mm /400*400mm |
Marking Depth | ≤2mm |
Marking Speed | 7000mm/s |
Minimum Line Width | 0.015mm |
Minimum Character | 0.2mm |
Repeated Precision | ±0.003mm |
Fiber Laser Source | JPT LP (Optional Raycus or IPG) |
Scan Head | Galvo-Tech / WISE SCAN from China |
Controller (software) | JZC Controller & EzCAD2 Software (Optionlal EzCAD3 or SAMLight) |
Life span of Fiber Laser Module | 100 000 hours |
Beam Quality | M2<1.3 |
Focus Spot Diameter | <0.01mm |
Output Power of Laser | 10%~100% |
Output Frequency of Laser | 1~600KHz |
Power Stability (8h) | <±1.5%rms |
System Operation Environment | Windows XP / 7 / 8 / 10 / 11 - 32 / 64bits |
Cooling Mode | Air Cooling |
Voltage | 220V/50HZ/1-PH or 110V/60HZ/1-PH |
Power Requirement | <450W |
Dimension (L*W*H) | 450*800*750mm |
Package Size | 500*850*900mm |
Net Weight | 55KG |
Gross Weight | 75KG |
Power | 20W / 30W / 50W / 100W / 120W |
