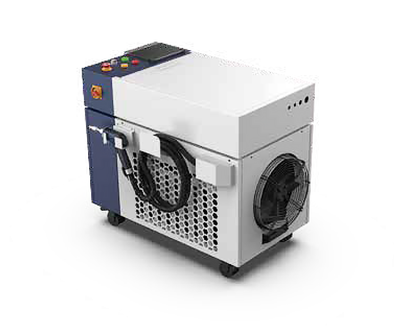

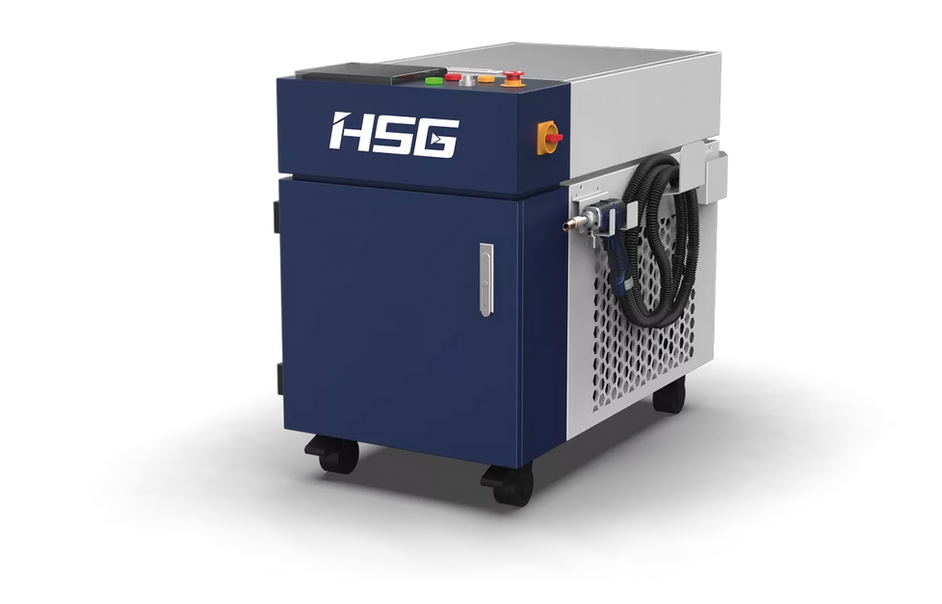

HSG FMW Series
3 in 1 Handheld Laser Welding Machine
Experience unparalleled precision and efficiency with the HSG Laser Handheld Laser Welding Machine, the ultimate solution for a wide range of welding applications.
Designed for flexibility and ease of use, this state-of-the-art welding tool offers seamless operation for both small and large projects, making it the perfect choice for industries ranging from automotive to custom fabrication.
FEATURES AND BENEFITS
Three-in-one Solution
The FMW 3000 features three operation modes - welding, cleaning and cutting.
Swing Welding Technology
With the swing welding mode of the WOBBLE welding heads, the machine features a high welding fault tolerance, and compensates for small laser spots, allowing wider weld widths.
Dual Temperature and Control Chiller
Equipped with a dual temperature and control chiller, the machine ensures precise temperature control for efficient heat dissipation from core optical components.
DC Dual-driven Wire Feeder
Delivers stable wire feeding for consistent welds.
TECHNICAL PARAMETERS
Dimensions (mm) | 624 x 806 x 970 (1 - 2 kW)
724 x 896 x 1052 (3 kW) |
Power (kW) | 1 - 3 |
Speed Range | 0~40mm/s |
Operating Temperature | 15~35 ℃ |
Working Voltage | AC220V/AC380V 50HZ/60HZ |
Welding Thickness | 0.5-6 mm |
Welding Gap Requirements | ≤0.5mm |
Laser Welding Head | Galvanometer single pendulum laser welding head |
Laser Wavelength | 1070±10NM |
Operating Environment Humidity | < 70% non-condensing |
Fiber Core Diameter | 14/25/50μm |
Fiber Length | 10 Meters |
Water Chiller | Industrial thermostatic water tank |
