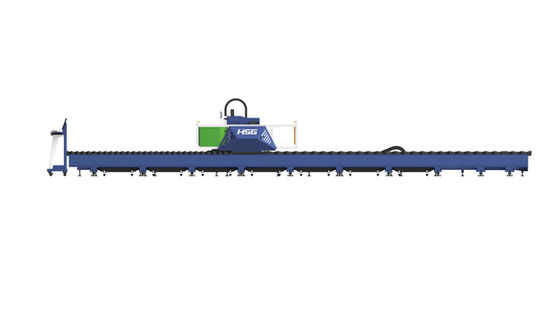

HSG GFA Series
High-power Large-format Laser Cutting Machine
The HSG GFA Large-Format Fibre Laser Cutting Machine is a heavy-duty, high-precision cutting solution engineered for manufacturers working with oversized sheet metal and large-scale fabrication projects. Designed to deliver exceptional accuracy, stability, and productivity, the GFA Series enables efficient processing of large-format materials while maintaining superior cut quality across every application.
Featuring an expansive cutting area and reinforced machine structure, the GFA Series is purpose-built to handle oversized plates and heavy sheets commonly used in industries such as construction, shipbuilding, transport, mining equipment, and heavy machinery manufacturing. Its rigid frame and advanced motion control system ensure smooth, vibration-free operation, even during high-speed cutting of large components.
Powered by advanced fibre laser technology and an intelligent cutting head, the GFA delivers fast piercing, clean edges, and minimal heat-affected zones across a wide range of materials, including carbon steel, stainless steel, aluminium, brass, and copper. This results in reduced secondary processing, improved part quality, and increased overall production efficiency.
The GFA Series is equipped with intelligent nesting software, real-time monitoring, and automated optimisation functions that help maximise material utilisation and minimise waste. These smart features streamline workflows, reduce operator workload, and improve cost control in high-volume production environments.
Bevel Cutting Head
The P series cutting head, combined with the AlphaT bus system, allows for 0-45° bevel cutting, including various types like V, X, and Y bevels. This flexibility makes it ideal for creating angled cuts with precision.
Bus-based Laser Cutting Heads
With power options ranging from 10kW to 40kW, ensuring stable cutting of thick sheets with precision. Incorporating optical filming technology to prevent lens pollution, preserving clarity and performance. Real-time monitoring of laser focus guarantees optimal cutting results. Plus, the bus-based height adjusting system enables seamless adjustment for enhanced accuracy and efficiency throughout the cutting process.
Segmented Splicing Machine Bed
The machine bed is made up of several sections that effortlessly join together. This allows for size customisation to accommodate large sheet metal cutting.

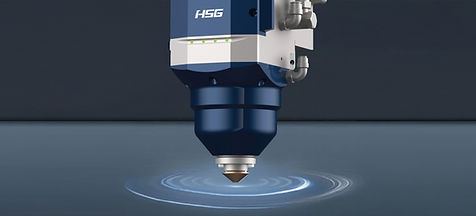

Follow-up Response Technology
Integration of high sensitivity striker plate detection with rapid vibrating sheet tracking, coupled with automatic obstacle avoidance.
Production Process Database
The database allows users to quickly access cutting settings for different materials and thicknesses. It also supports advanced features like nano joints for better part retention, fly cutting for fast processing of thin sheets, and edge searching for precise cutting of round discs.
HSG Bus-based Control System
EtherCAT bus enables high-speed response with robust anti-interference capability and simplified electrical maintenance, while automated handling of machine maintenance includes real-time monitoring of key components, ensuring timely reminders for regular upkeep.
TODC-B Dust Extraction Unit
Optional - can be provided with machine by request
