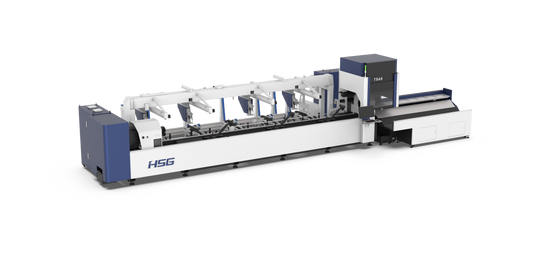

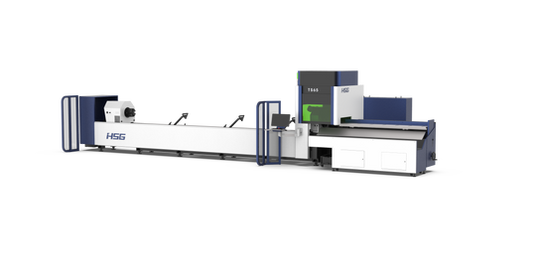

HSG TS65 Series
High-speed Tube Fiber Laser Cutting Machine
The HSG TS65 tube laser cutting machine is engineered to deliver precision and efficiency in industrial tube cutting applications. Combining cutting-edge technology with user-friendly features, this advanced machine ensures clean, accurate cuts across a variety of tube materials, including steel, stainless steel, and aluminum.
Its versatility allows for handling different tube sizes and shapes—round, square, and rectangular—making it adaptable to diverse project requirements. Built with a robust frame and high-quality components, the TS65 is designed for durability and reliability in rigorous use.
FEATURES AND BENEFITS
Intelligent Digital Chucks
Closed-loop control and real-time wireless data transmission for seamless operation and monitoring. The chucks intelligently detect the clamping status and accurately measure tube size, enabling precise adjustments. It also features self-adaptive adjustment of clamping force to optimise performance. In case of an empty or incorrectly clamped tube, the machine stops immediately, minimising errors and maximising work accuracy.
HSG-X Bus Control System
HSG-X control system is bus-based and developed by HSG Laser. With intelligent and easy-to-operate service, it can offer users effective solutions to address problems of difficult operation, low efficiency and high costs.
Automatic Unloading Device
The height of the turning plate can be manually adjusted to accommodate different types of tubes during unloading. Additionally, a concave supporting frame is available to protect the tubes from scratches.
Cut Tubes at High Speed
The chucks rotate and move at the speed of 120r/min and 120m/min respectively. With that, users will enjoy fast cutting, stable services and high production.
SPECIFICATIONS
Overall Dimensions (LxWxH) | 12500 x 4700 x 2600mm |
Power | 3 - 6 kW |
No-load Speed | 120m/min |
Acceleration | 1.2G |
Tailing Length | Tailings in Double-chuck
Clamping: ≥150mm |
Cutting Capacity | Round: 12 - 273 mm
Square: 12x12 - 200x200 mm
Diagonal: 273 mm |
X/Y Positioning
Accuracy | ±0.03mm/m |
X/Y Repositioning
Accuracy | ±0.03mm |
Max. Load Capacity | 200kg |
Cutting Length Range | 1000 - 6500mm |
