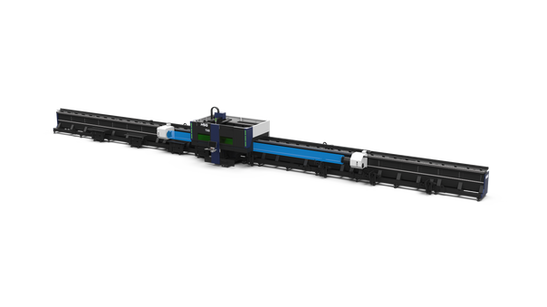

HSG TX5R
Heavy-duty Tube Fiber Laser Cutting Machine
The HSG TX5R is a high-performance, heavy-duty tube laser cutting solution engineered for manufacturers who require maximum strength, precision, and flexibility when processing large and complex profiles. Designed for demanding industrial environments, the TX5R combines advanced fibre laser technology with a robust mechanical structure and intelligent automation to deliver reliable, high-quality cutting performance at scale.
Featuring a lateral hanging bed design, the TX5R enhances operator safety while simplifying material loading and unloading, particularly when handling long, heavy tubes and structural sections. This innovative layout improves workflow efficiency and reduces manual handling risks in high-volume production environments.
The machine supports processing of tubes and profiles up to 12,000mm in length and 510mm in diameter, making it ideal for large structural components and heavy fabrication projects. Independent servo-driven support systems provide precise positioning and stable rotation throughout the cutting process, minimising material deflection and ensuring consistent accuracy along the full length of each workpiece.
Capable of processing round, square, rectangular, and irregular profiles, including angle steel, channel, and I-beams, the TX5R delivers exceptional versatility for industries such as structural steel fabrication, construction equipment manufacturing, mining, transport, and heavy machinery production.
Lateral Hanging Machine Bed
The low center of gravity design of the lateral hanging bed improves safety, reduces manual handling effort, and makes tube loading more efficient.
Follow-Up Support Plate with Unloading Function
Supports tubes during unloading to prevent deformation or misalignment. Highly adaptable to various tube shapes, sizes, and specifications.
Heavy-Duty Tube and Profile Cutting
Handles tubes weighing up to 2,000 kg, with diameters from 50 mm to 510 mm and lengths up to 12,000 mm. Also capable of cutting a wide range of profiles, including channel steel, angle iron, and I-beams.
Independent Servo-Driven Follow-Up Support
Delivers precise, stable support during cutting, enhancing accuracy and minimising material movement throughout the process.
HSG-X10000 Bus Control System
A highly integrated control system designed specifically for tube processing, offering intuitive operation and a comprehensive suite of auxiliary functions to simplify complex tasks.
Optional Bevel Cutting Capability
With the optional bevel cutting head, the TX5R can perform precise bevel cuts from 0° to 45°, expanding its processing capabilities for welding and fabrication applications.
TODC-B Dust Extraction Unit
Optional - can be provided with machine by request
