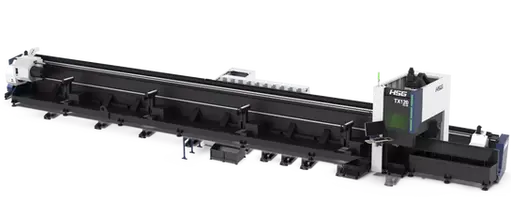

HSG TX Plus Series
Heavy Duty Tube Laser Cutting Machine
The TX Plus Series range are precision tube laser cutting machines designed for efficiency and versatility. Capable of processing various materials including stainless steel, carbon steel, aluminum, and copper, the TX Plus Series excel in cutting tubes with diameters ranging from 20mm to 360mm. The high-speed fiber laser technology ensures clean, precise cuts, making them ideal for industries such as automotive, construction, and furniture manufacturing.
With user-friendly software, the TX Plus Series offer easy programming and quick adjustments, allowing for complex cuts and diverse applications. The machines are engineered for reliability and consistency, delivering superior performance with minimal maintenance, making them an excellent investment for businesses seeking advanced tube processing capabilities.
FEATURES AND BENEFITS
High Speed and Intelligent for Better Processing
The system boasts high-speed data transmission, ensuring minimal delays and precise positional energy control. Its advanced technology includes a high rotational speed and air velocity bus system, coupled with servo motors, effectively minimising unproductive time.
HSG-X Bus Control System
HSG-X control system is bus-based and developed by HSG Laser. With intelligent and easy-to-operate service, it can offer users effective solutions to address problems of difficult operation, low efficiency and high costs.
Heavy-duty Side Lateral Machine Bed
The bed design lowers the gravity center of the chucks, creating a more stable and static setup, which enhances cutting accuracy. The lateral positioning also makes material loading easier and more efficient, allowing for smoother operation and reducing the risk of errors during processing.
Double-chucks with Upgraded Processing Ability
The HSG TX Plus Series features double-chucks with enhanced processing capabilities, providing secure and precise tube clamping. This design ensures stability during cutting, enabling accurate, high-speed operations for complex shapes and large tube diameters. The upgraded chucks reduce vibrations and improve overall cutting efficiency.
SPECIFICATIONS
Power | 3-12 kW |
Chuck Rotating
Speed | 60r/min |
No-load Speed | 80m/min |
Acceleration | 0.6G |
Tailings in Single Chuck
Clamping Mode | ≥110mm |
Cutting Capacity | - 20 - 360mm
- 20x20 - 360x360mm
- 20 Side Length 360mm |
X/Y Positioning
Accuracy | ±0.05mm/m |
X/Y Repositioning
Accuracy | ±0.05mm |
Max. Loading
Capacity | 1000 kg |
Tube Cutting Length | 1000-6500mm(TX65 PLUS)
1000-9000mm(TX90 PLUS)
1000-12000mm(TX120 PLUS) |
