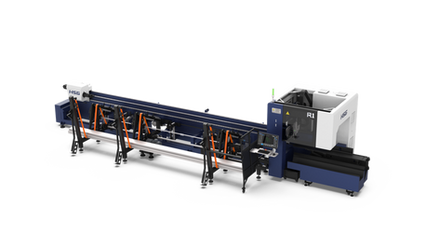

HSG R1R Series
High-speed Small Tube Laser Cutting Machine
The HSG R1R Series is a high-speed, high-precision tube laser cutting solution engineered to maximise efficiency, accuracy, and reliability in modern fabrication environments. Designed for manufacturers seeking fast turnaround times and streamlined production workflows, the R1R Series combines intelligent automation with robust mechanical design to deliver consistent, high-quality tube processing.
Featuring rapid material loading in as little as 20 seconds, the R1R Series significantly reduces handling time and improves overall throughput. It supports a wide range of tube sizes, accommodating diameters from 8mm to 120mm and lengths of up to 6.5 metres, making it suitable for diverse production requirements across multiple industries.
The machine is equipped with advanced chuck adjustment technology to ensure precise clamping, automatic centring, and stable rotation during cutting. This guarantees accurate positioning and smooth processing of round, square, rectangular, and custom-shaped tubes, resulting in clean edges, tight tolerances, and excellent repeatability.
Supporting both automatic and semi-automatic loading modes, the R1R Series offers flexible operation to suit different production volumes and workshop layouts. These loading options reduce manual handling, improve workplace safety, and enable efficient continuous production.
Efficient Multi-mode Loading
The R1 Series, when used with automatic material racks, can load materials in just 20 seconds. These racks are designed to handle tubes with diameters ranging from 20mm to 120mm and lengths between 4m and 6.5m. Additionally, the automatic material racks support a semi-automatic loading mode, allowing for the loading of tubes one at a time.
Chuck Jumping for Short Tailings
Equipped with a cylinder chuck that can reduce the long tailing length by adjusting the chuck position. High-precision cutting with chuck adjustment helps maintain cutting accuracy on long tubes.
Follow-up Support for High Precision
The machine bed is equipped with highly sensitive and independent servo follow-up support to provide enough support force in rotation cutting and achieve high cutting accuracy.
Intelligent Bus Operating System
The system offers a range of auxiliary functions to meet diverse processing needs. Additionally, the T Series features professional nesting software, facilitating efficient management of production progress and accurate price calculations.
TODC-B Dust Extraction Unit
Optional - can be provided with machine by request
